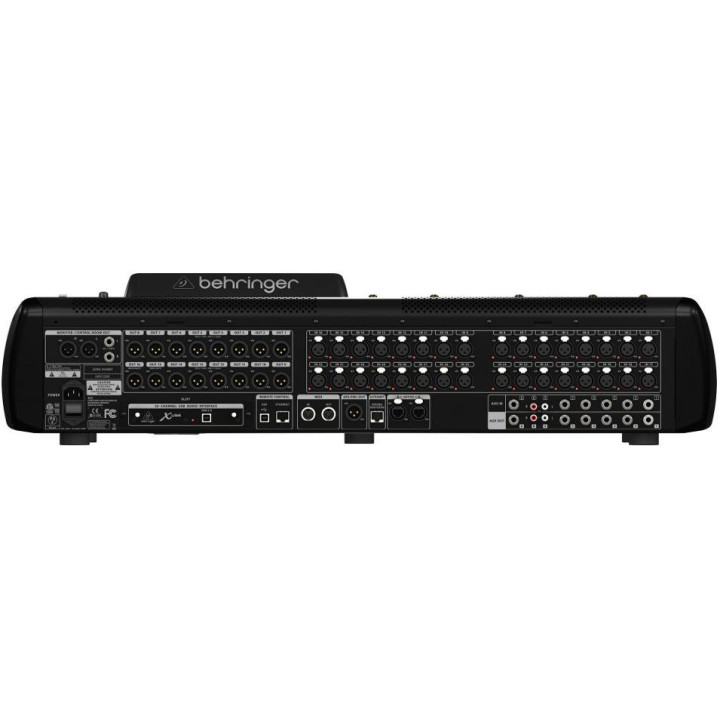

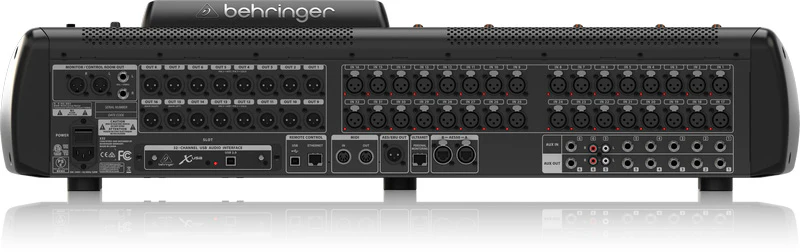

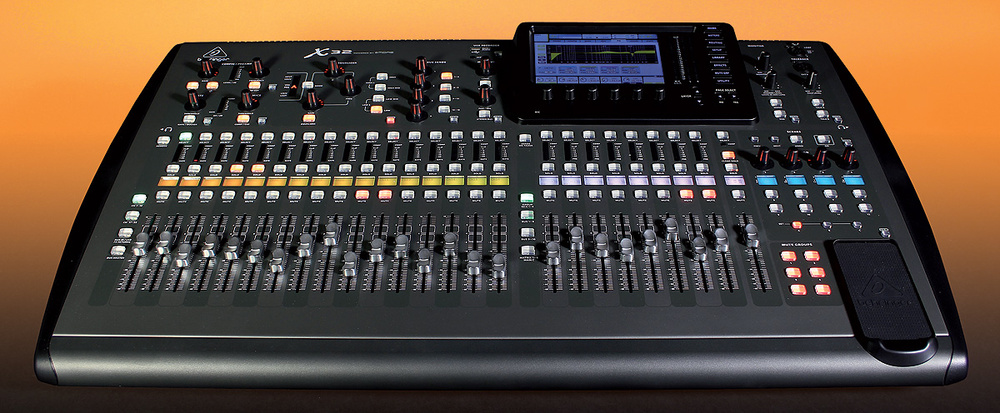

Behringer X32 40-channel Digital Mixer
Brand: Behringer
Description
40-input, 25-total-bus digital mixer 16 mix buses, main LCR, 6 matrix buses Gain-programmable Midas-designed mic preamps deliver enhanced dynamic range and superior common mode rejection ratio (CMRR) Highly configurable, with up to 40 processing channels and 25 motorized faders USB flash connection allowing uncompressed recordings, storing show presets, and enabling system updates 6 independent matrix mix buses with inserts, 6-band parametric EQ, and dynamics processing Powerful scene management for easy handling of complex productions X-USB recording interface card included Support for optional Behringer P16 series personal mixers 48-channel digital snake ready (sold separately) via AES50 ports v3 Firmware Features: Auto Mix yields automatic gain sharing and mic ducking X-Touch integration allows direct control of parameters over Ethernet Set up a full crossover without using a matrix mix Reverse polarity on your outputs for easy speaker alignment Redesigned X32-Edit app features a new interface, full screen capabilities, floating windows, configurable fader layers, and more
Specifications
Digital Mixer
Channels:
40
Inputs - Mic Preamps:
32 x XLR
Phantom Power:
32 Channels
Outputs - Main:
16 x XLR, 2 x XLR (monitor), 2 x 1/4" TRS (monitor)
Outputs - Digital:
1 x XLR (AES)
Send/Return I/O:
1 x Dual RCA Stereo (aux in), 6 x 1/4" TRS (aux in), 1 x Dual RCA Stereo (aux out), 6 x 1/4" TRS (aux out)
Busses/Groups:
25 total (16 x bus, main LCR, 6 x matrix)
Inserts:
Yes
Talkback:
1 x XLR
MIDI I/O:
In/Out
Data I/O:
1 x Ultranet, 2 x AES50, 1 x Ethernet
Headphones:
2 x 1/4" TRS (stereo)
USB:
2 x Type B, 1 x Type A
Computer Connectivity:
USB
I/O Expansion Slots:
1 x slot (32-channel USB audio interface)
Faders:
25 x 100mm (motorized)
A/D Resolution:
24-bit/48kHz
EQ Bands:
4-band EQ (channel strip), 6-band EQ (mix bus)
Effects:
Yes
Signal Processing:
Gate, Compressor
Features:
1 x 4-pin (lamp)
DAW Control:
Yes
Screen:
7" Color TFT (main), LCD with RGB Color Backlight (channel)
Power Source:
Standard IEC AC cable
Height:
7.9"
Depth:
20.8"
Width:
35.4"
Weight:
45.4 lbs.
