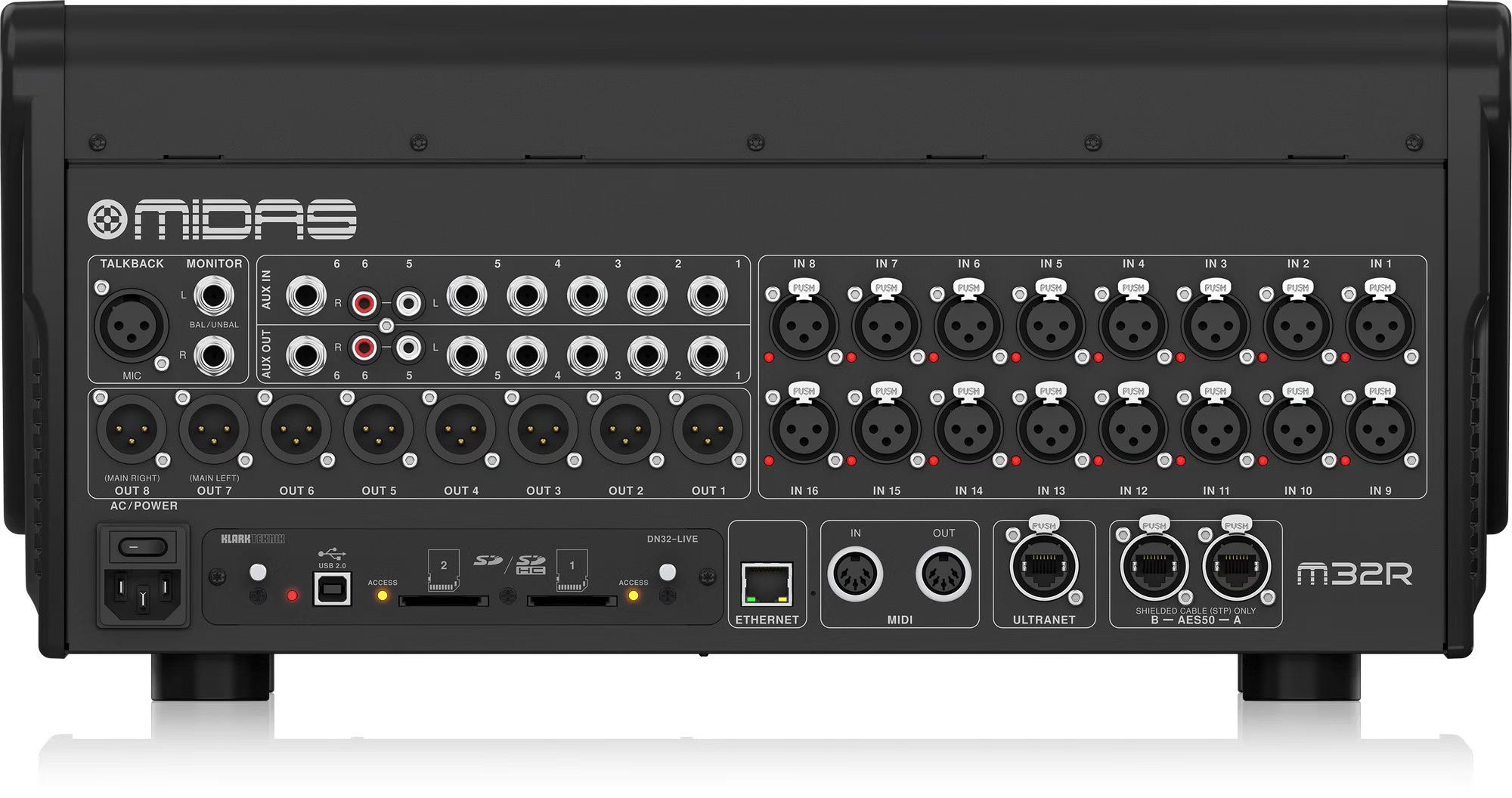

Midas M32R LIVE 40-channel Digital Mixer
Brand: Midas
Description
Rich, vibrant sound from 16 Midas preamps Incredibly strong yet lightweight, thanks to carbon fiber, aluminum, and steel construction Outstanding signal path with 48kHz digital conversion Impeccable sound quality throughout your signal path, with time-aligned and phase-coherent mix buses Best-in-class motorized faders rated at over 1 million life cycles 32 channels of live recording and playback via a pre-installed Klark Teknik DN32-LIVE expansion module
Specifications
Type:
Digital Mixer
Channels:
40
Inputs - Mic Preamps:
16 x XLR
Phantom Power:
16 Channels
Inputs - Line:
1 x Dual RCA Stereo (aux)
Inputs - Other:
6 x 1/4" TRS (aux)
Outputs - Main:
8 x XLR (main), 2 x 1/4" TRS (monitor)
Outputs - Other:
6 x 1/4" TRS (aux), 1 x Dual RCA Stereo (aux)
Busses/Groups:
25 time-aligned/phase-coherent mix buses, 8 DCA groups
Talkback:
1 x XLR
MIDI I/O:
In/Out/USB
Data I/O:
1 x EtherCon (Ultranet), 2 x EtherCon (AES50), 1 x Ethernet
Headphones:
2 x 1/4" TRS (stereo)
USB:
1 x Type B, 1 x Type A
Computer Connectivity:
USB, Ethernet
Faders:
16 x Input Faders, 1 x Main Fader
A/D Resolution:
24-bit/48kHz
EQ Bands:
4-band EQ
Effects:
8 x Stereo FX Engines
Signal Processing:
Gate, Compressor
Features:
100-band RTA, 100 scenes, 100 Snippets, 32-bit/48kHz SD Card recording
DAW Control:
Yes
Screen:
5" TFT Display
Storage:
2 x SD card slots
Power Source:
Standard IEC AC cable
Height:
8.2"
Depth:
24.3"
Width:
18.8"
Weight:
31.5 lbs.
