Description

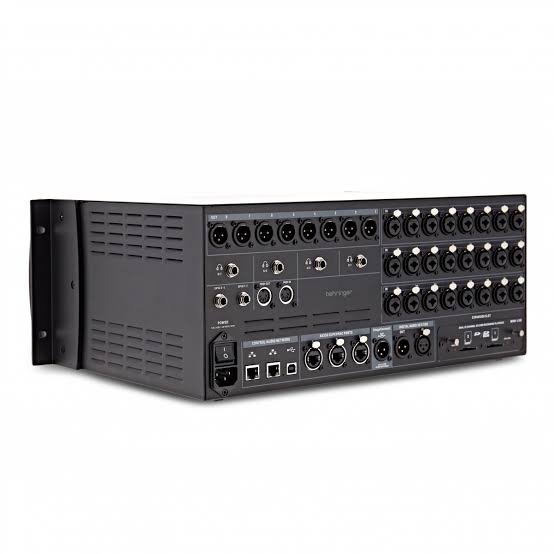

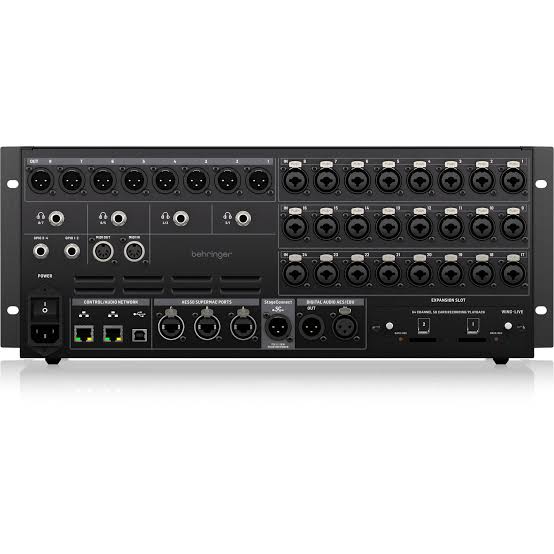

Boasts identical processing power, channel count, effects, expansion slots, and digital I/O to the full-size WING console 48-stereo-channel digital mixer with 40 stereo input processing channels and 8 stereo aux channels 28 stereo buses — 16 stereo aux buses, 8 stereo matrices, and 4 stereo mains 10.1-in. capacitive touchscreen provides full access to all features and parameters — no tablet required A suite of external remote control software facilitates offline mixing on mobile and desktop 24 Midas Pro mic preamps and 8 Midas outputs ensure you capture high-quality sound 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals AES50 networks are compatible with Midas M32 and Behringer X32 mixers 32-channel StageConnect interface for personal monitoring or analog I/O boxes Includes AES/EBU stereo digital I/O, a headphone connector, MIDI I/O, and GPIO ports 4 additional rear-panel stereo outputs with high-performance headphone amplifiers are tailor-made for IEM applications Compatible with Behringer and Midas digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32 WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards Optional expansion cards supply Dante support Built-in 48-in/48-out USB audio interface Sources put the emphasis on your source audio rather than on your inputs and channels Apply names, icons, and colors to each Source for at-a-glance identification Each channel can be either mono, stereo, or mid-side — no channel linking required 16 true-stereo processors with FX from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, elysia, and Empirical Labs Space-saving 4U rackmount form factor
