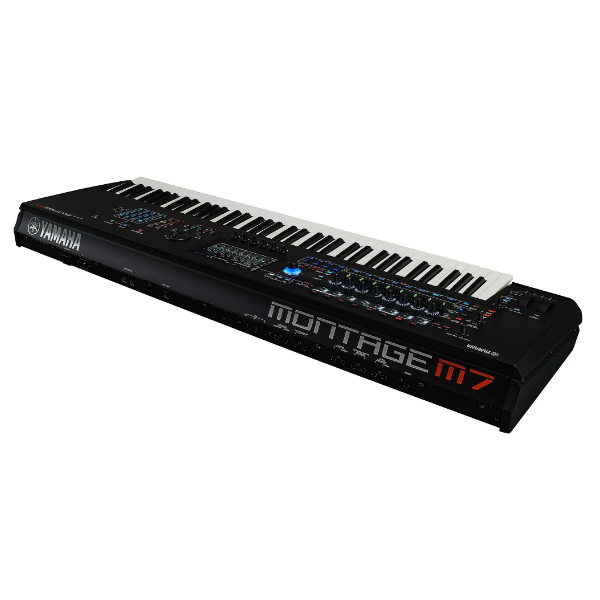

Yamaha Montage M7 76-key Synthesizer
Brand: YAMAHA
Description
AWM2 (Advanced Wave Memory 2): 128-element structure for realistic, high-definition instrument sounds. FM-X (Frequency Modulation): 8-operator FM synthesis, capable of 128-note polyphony. AN-X (Analog Network): Virtual analog engine for vintage sound and behavior, with 16-note polyphony. Polyphony: 400 notes total (128 AWM2 Preset, 128 AWM2 User, 128 FM-X, 16 AN-X). Performance Controls: 5-segment ribbon controller with hold button, 8 assignable controls/faders with sub-display, and a dedicated scene/navigation system. Connectivity: USB MIDI and multichannel 6-in/32-out audio interface (24-bit/44.1 kHz). Physical Specs: 76 keys, 17.6 kg, 1244 × 131 × 396 mm. The M7 bridges studio and stage with extensive motion control capabilities, allowing for complex, evolving, and dynamic soundscapes, including compatibility with the Extended Soft Synth Plug-in (E.S.P.) for DAW integration.
Specifications
Type:
Keyboard Synth
Sound Engine:
AWM2, FM-X, AN-X
Analog/Digital:
Digital
Number of Keys:
76
Type of Keys:
FSX Semi-weighted
Aftertouch:
Yes, Channel
Velocity Sensitive:
Yes
Other Controllers:
Pitchbend, Mod wheel, Ribbon Controller
Polyphony:
AWM2: 256 notes, FM-X: 128 notes, AN-X: 16 notes
Number of Presets:
3369 factory
Oscillators:
128 Elements (AMW2), 8 operators, 88 algorithms (FM-X), 3 x oscilators, 1 x noise (AN-X)
Filter:
18 types
Sequencer:
Loop-based Pattern Sequencer
Memory:
9.97 GB Preset Memory, 3.8GB User Memory
Audio Inputs:
2 x 1/4" TS (A/D input: L/Mono, R)
Audio Outputs:
2 x 1/4" TRS (Assignable output: L, R), 2 x 1/4" TRS (Output: L/Mono, R)
Headphones:
1 x 1/4"
USB:
2 x Type A (Device), 1 x Type B (Host)
MIDI I/O:
In, Out, Thru, USB
Pedal Inputs:
2 x 1/4" (Foot Switch), 2 x 1/4" (Foot Controller 1, 2)
Power Source:
Standard IEC AC Cable
Height:
5.18"
Width:
49"
Depth:
15.56"
Weight:
37.5 lbs.
