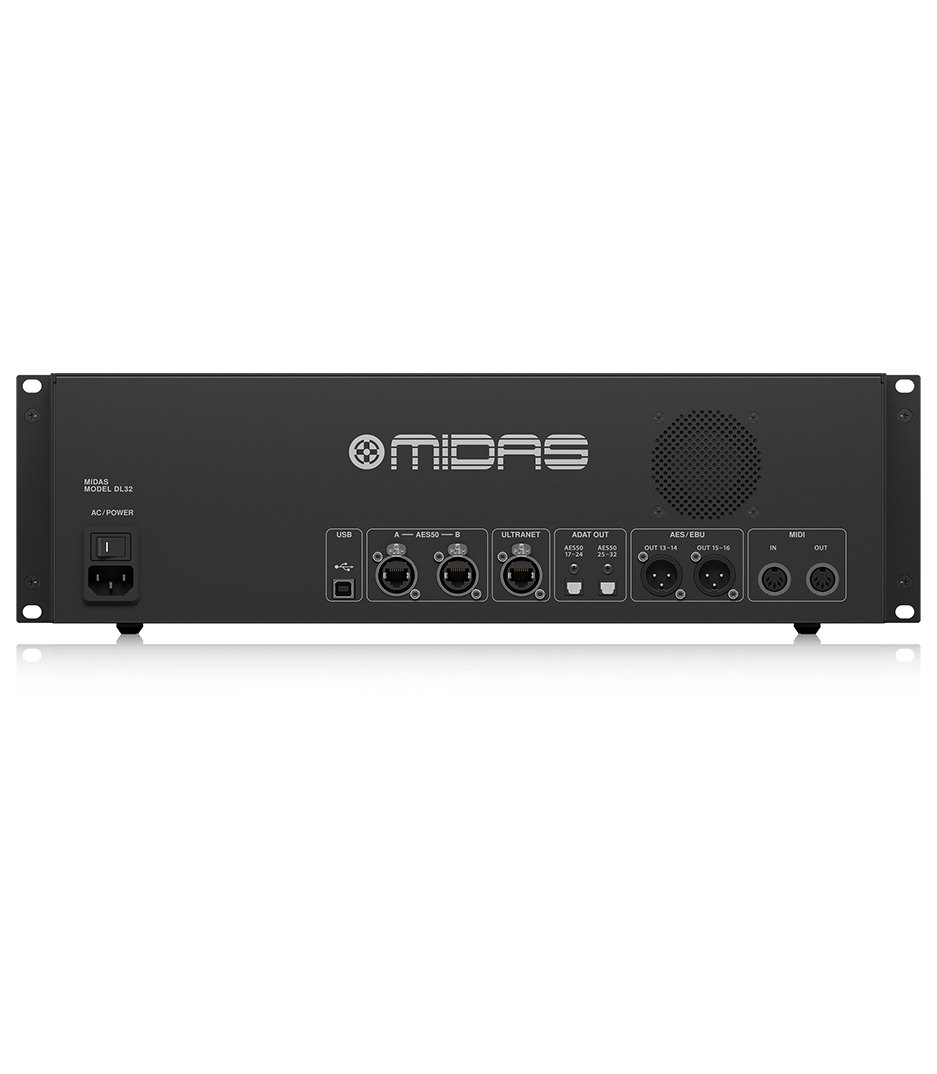

Midas DL32 32-input/16-output Stage Box
Brand: Midas
Description
Flexible professional digital stage box that works with Powerplay monitor systems and AES50-ready digital consoles 32 fully programmable and remote-controllable Midas Pro mic preamps give you exceptional sound, right from the stage 16 analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage AES50 network ports provide you with ultra-low latency digital audio that's in-ear compatible Up to 328 ft. of networking capability via a single lightweight Cat 5e cable (not included) Precise LED metering plus 7-segment displays let you keep a close eye on your levels Headphones output assignable to any of the inputs/outputs for onstage monitoring Ultranet connectivity for Behringer's Powerplay P16 personal monitoring system is perfect for in-ear applications Dual ADAT outputs for use in splitter mode and standalone digital multicore applications MIDI In/Out provide bidirectional communication between FOH console and onstage MIDI devices Durable yet compact, all-steel 3U rack-mount chassis provides flexible mounting
Specifications
Digital Stage Box
Compatibility:
AES50/Ultranet systems
Channels:
32 x 16
Inputs - Mic Preamps:
32 x XLR
Phantom Power:
Yes
Outputs - Main:
16 x XLR (line)
Inputs - Digital:
2 x EtherCon (AES50)
Outputs - Digital:
2 x EtherCon (AES50), 2 x XLR (AES/EBU), 2 x Optical Toslink (ADAT)
Data I/O:
1 x Ethernet (Ultranet monitoring)
USB:
1 x Type B
Computer Connectivity:
USB, Ethernet
MIDI I/O:
In/Out
Rackmountable:
3U
Depth:
9.5"
Width:
19"
Weight:
12.5 lbs.
